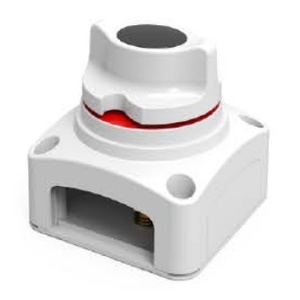

SeaFlo Mini Battery Isolator Switch - 4 position 1-2-Both-Off

SeaFlo marine battery isolation and combination switch - 3 year warranty:

Voltage:12V/24V/32V

Amps:

• 300A Continuos
• 500A Intermittant for maximum 5 minutes
• 900A Cranking for maximum 30 seconds

Cable Size: 4/0 AWG - 120mm²

Positions: 4 position 1-2-Both-Off

Switches an isolated battery bank to all loads or combines battery banks to all loads.

Tin-plated copper studs for maximum conductivity and corrosion resistance.

Studs accept 3/8" (M10) ring terminals.

One-piece terminal stud design never loosens over time. Isolating cover with three snap-off side pieces protects rear contacts and allows wire access in any direction.

(SFCBS-300-402)
