Stainless Closed Body Fork Screw Terminal I QLD

Buying Options

Quantity	Image	Name	Price

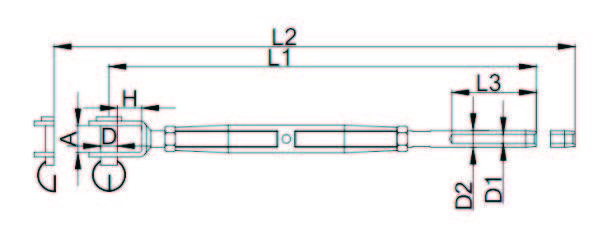

		AISI 316 Screw Fork & Terminal for 3mm Wire A = 8mm, D = 6mm, D1 = 3.3mm, L1 = 180mm, L2 = 250mm	$8.00 In stock
		AISI 316 Screw Fork & Terminal for 4mm Wire A = 11mm, D = 8mm, D1 = 4.3mm, L1 = 200mm, L2 = 275mm	$10.00 In stock
		AISI 316 Screw Fork & Terminal for 5mm Wire A = 13mm, D = 9mm, D1 = 5.3mm, L1 = 230mm, L2 = 320mm	$15.00 In stock
		AISI 316 Screw Fork & Terminal for 6mm Wire A = 14mm, D = 12mm, D1 = 6.4mm, L1 = 290mm, L2 = 400mm	$23.00 In stock
		AISI 316 Screw Fork & Terminal for 8mm Wire A = 17mm, D = 16mm, D1 = 8.4mm, L1 = 380mm, L2 = 520mm	$30.00 In stock

Add Selected to Cart

Description
Specifications

AISI 316 Screw Fork & Terminal for 3mm Wire, Thread M6, B/L 1,100Kg

AISI 316 Screw Fork & Terminal for 4mm Wire, Thread M8, B/L 1,300Kg

AISI 316 Screw Fork & Terminal for 5mm Wire, Thread M10, B/L 2,350Kg

AISI 316 Screw Fork & Terminal for 6mm Wire, Thread M12, B/L 5,100Kg

AISI 316 Screw Fork & Terminal for 8mm Wire, Thread M16, B/L 8,000Kg

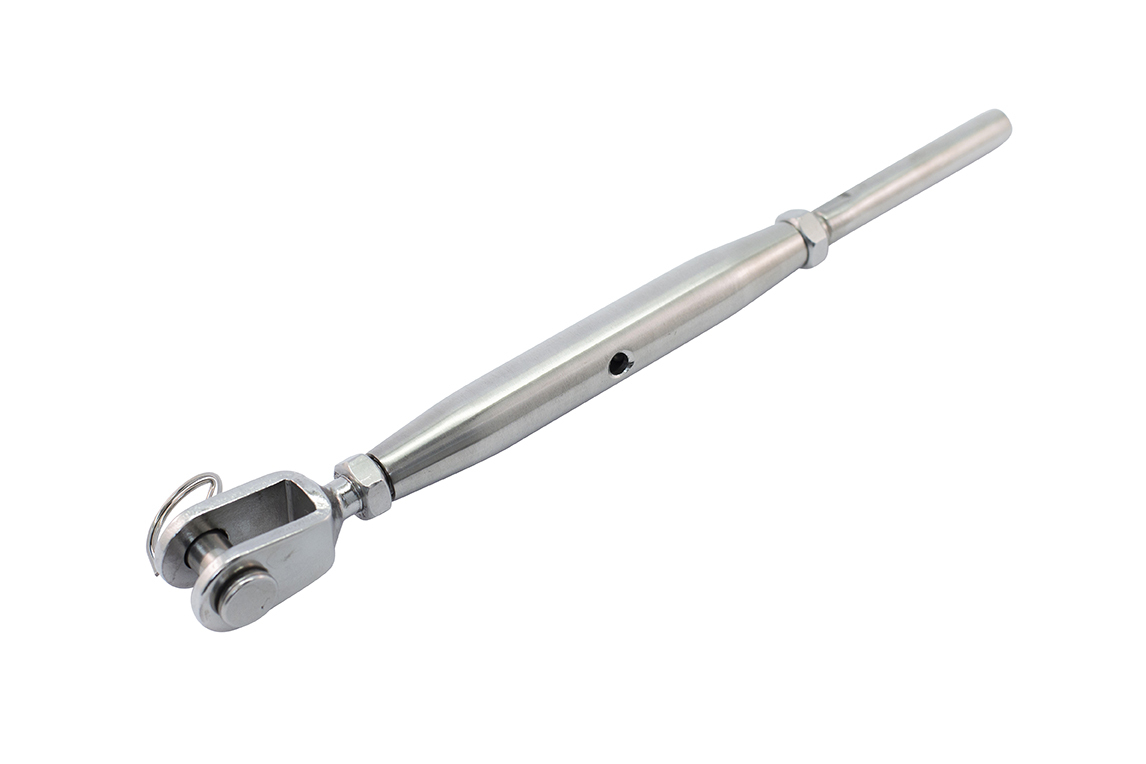

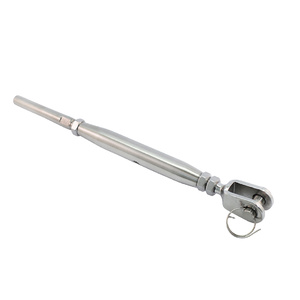

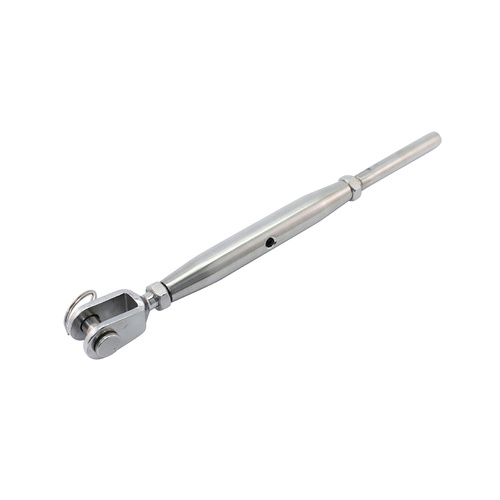

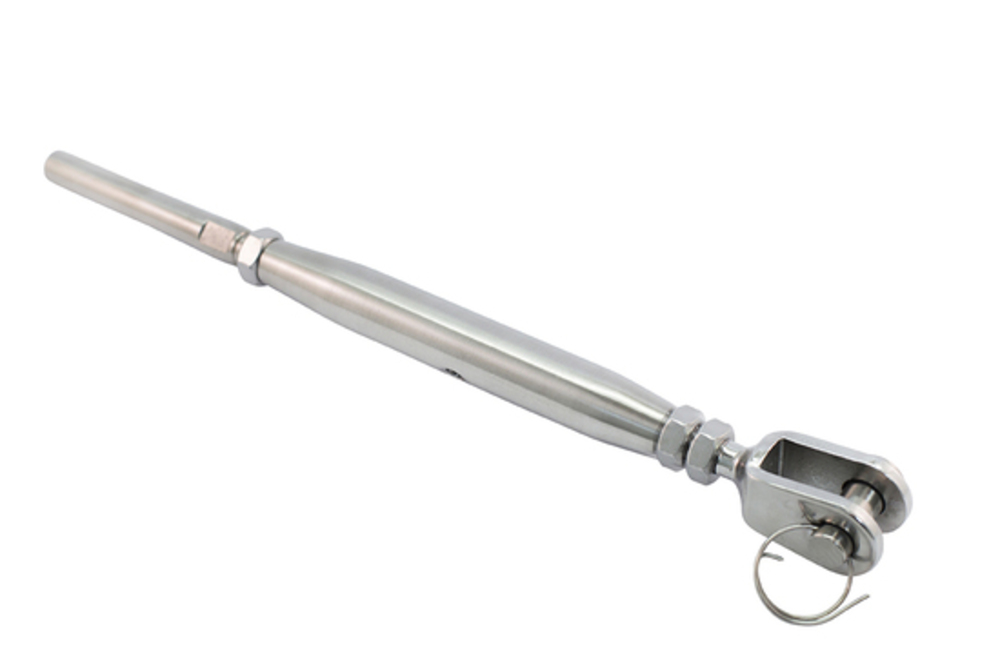

These AISI 316 terminals, closed body screw terminals and screw fittings are constructed from premium strength, marine grade stainless steel. They are precision manufactured for the corresponding diameters of metric stainless steel wire.

All our stainless steel rigging is thoroughly tested against specifications and strength ratings.

They are then polished to a smooth, mirror finish.

Always ensure each terminal is properly crimped ensuring a clean and strong join to the wire.
